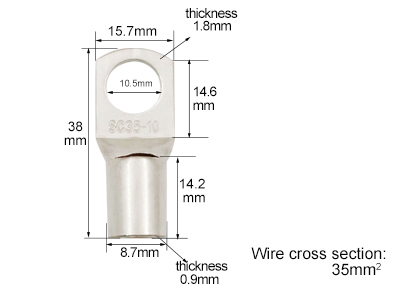

产品名称： SC35-10

d2φ

dφ

Dφ

L1

L

SC1.5-5

5.2

1.8

3.7

5

16

1.5

SC2.5-4

4.2

2.4

4.0

7

18

2.5

SC2.5-5

5.2

20

SC4-5

5.2

3.1

4.8

7

20

4

SC4-6

6.5

SC6-5

5.2

3.8

5.5

9

24

6

SC6-6

6.5

SC10-6

6.5

5

6.5

9

26

10

SC10-8

8.4

SC16-6

6.5

5.7

7.5

11

30

16

SC16-8

8.4

SC25-6

6.5

7.2

9

13

35

25

SC25-8

8.4

SC35-8

8.4

8.5

10.8

13.5

38

35

SC35-10

10.5

SC50-8

8.4

9.8

12.5

16

44

50

SC50-10

10.5

SC70-10

10.5

11.5

14.5

18

51

70

SC70-12

13.0

SC95-10

10.5

13.7

17

22

57

95

SC95-12

13.0

SC120-12

13

15

19

24

64

120

SC120-16

17

SC150-12

13

16.7

21

26

71

150

SC150-16

17

18.5

23

30

79

185

SC185-16

17

21

26

38

93

240

SC240-16

17

SC240-20

21

24.5

30

42

103

300

SC300-16

17

SC300-20

21

27

34

42

113

400

SC400-16

17

SC400-20

21

SC500-16

17

30

38

48

123

500

SC500-16

21
