编号 |
|
尺寸（mm） |
||||||||
|
A.W.G |
mm² |
C |
T |
E |
L |
F |
B |
D |
Q |
|
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|||
|
CEF 2216 |
22-16 |
0.5-1.5 |
2.4 |
0.4 |
7.0 |
15.3 |
6.3 |
9.0 |
9.0 |
5.0 |
|
CEF 2214 |
22-14 |
1.5-2.5 |
3.1 |
0.4 |
7.0 |
18.3 |
8.3 |
10.0 |
9.1 |
5.7 |
|
CEF 1810 |
18-10 |
4-6 |
4.5 |
0.75 |
7.0 |
20.0 |
10.0 |
10.0 |
12.0 |
8.0 |
|

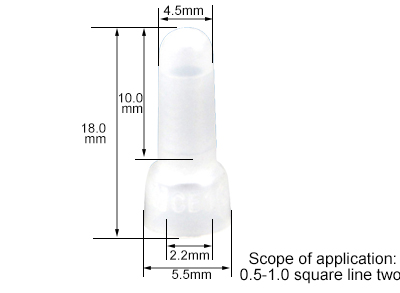

CE 1 |
22-16 |
0.5-1.5 |
2.2 |
3.0 |
6.0 |
18.0 |
10.0 |
5.5 |
5.5 |
4.5 |
|
CE 2 |
16-14 |
1.5-2.5 |
2.9 |
4.0 |
6.5 |
19.8 |
11.0 |
6.5 |
7.0 |
5.0 |
|
CE 5 |
12-10 |
4-6 |
4.3 |
5.0 |
8.0 |
25.0 |
14.0 |
10.0 |
10.0 |
7.0 |
